Product description
Synchromesh rings are used to ensure smooth gear changes. They bring the speed of the shaft and the gear to be engaged to approximately the same speed before the gear is actually engaged.
From August 1960, Volkswagen used a fully synchronized gearbox on most versions, with the exception of reverse gear. This can often be noticed because reverse may grind if it is engaged too quickly. The gears that are not engaged rotate freely on the shaft. Engaging a gear connects the selected gear to the shaft.
During shifting, the gear initially rotates at a different speed from the shaft. Movement of the shift fork moves the selector sleeve towards the gear and presses the synchromesh ring against the conical friction surface of the gear. The resulting friction equalizes the speeds. Once the speed difference is sufficiently small, the selector sleeve can move further and the teeth engage, allowing the gear to be selected without grinding.
Synchronization works during both upshifting and downshifting. Shifting very quickly or forcing the gear lever accelerates wear because the synchromesh ring does not have enough time to equalize the speeds. Therefore, shift calmly: apply light pressure to the gear lever and only push it further when the gear is almost ready to engage by itself.
Synchromesh rings are wear parts. With the gearbox dismantled, wear can be checked by pressing the ring against the cone of the gear and measuring the gap with a feeler gauge. As the ring wears, this gap becomes smaller. Compare the measured value with the wear limit specified in your workshop manual. If the gap is smaller than the prescribed minimum value, the synchromesh ring must be replaced.
Synchromesh ring for 1st and 2nd gear
214 items in stock
€5.31 (Each)
Prices incl. VAT
- Order before 3PM (CET)? Shipped the same day!
- Do you have questions? We are reachable until 17h (CET).
- VW specialist since 1989
- 30 days return period
Beetle
Karmann Ghia
T2 Bay through 7.1975
Type 3
Trekker
Note:
only for fully synchronized gearboxes
Note: Fitment on Brazilian and Mexican buses is not guaranteed unless specifically stated.
Do you want to know where this part belongs? Consult the exploded view drawing.
View drawing| Manufacturer | Paruzzi BV |
|---|---|
| Manufacturer address | Kreeft 16, 4401NZ Yerseke, Nederland |
| Manufacturer contact | sales@paruzzi.com |
| Country of origin | mx |
Specifications
| Paruzzi number | 1422 |
|---|---|
| Original VW number | 113311269B |
| Brand | Paruzzi |
Share:
- Applicable on Beetle 8.1960 and later | Karmann Ghia 8.1960 and later | Bus 6.1959 until 7.1967 | Type 3 | Thing | Note: Fitment on Brazilian and Mexican buses is not guaranteed unless specifically stated.
- Paruzzi number: 1415
- Original VW number: 111398005A
225 items available
Prices incl. VAT
- Applicable on Beetle 8.1960 and later | Karmann Ghia 8.1960 and later | Bus 6.1959 and later | Type 3 | Thing | Note: | Only for a fully synchronized transmission | Note: Fitment on Brazilian and Mexican buses is not guaranteed unless specifically stated.
- Paruzzi number: 5415
- Original VW number: 113311113A, 111307113B, 111501139, 113301185A, 001301227, 085301227, N138161, 111501131, 111501131A, 111501133, 111501133A, 113301185, 113301191, 211301215, 001301215
90 items available
Prices incl. VAT
- Applicable on Beetle | Karmann Ghia | Type 3 | Thing
- Paruzzi number: 5416
- Original VW number: 113311113A, 111307113B, 001301227, 085301227, 113301185A, 001301215, 211301215, 113301191, N0138165, 020409289B, 113301189A, 113301189F
41 items available
Prices incl. VAT
- Applicable on manual and automatic transmissions | Note: Fitment on Brazilian and Mexican buses is not guaranteed unless specifically stated.
- Paruzzi number: 50715
970 items available
Prices incl. VAT
- Applicable on Beetle 8.1960 and later | Karmann Ghia 8.1960 and later | Bus 6.1959 and later | Type 3 | Thing 8.1970 and later | Note: Fitment on Brazilian and Mexican buses is not guaranteed unless specifically stated.
- Paruzzi number: 1416
- Original VW number: 113311113A, 111307113B
1262 items available
Prices incl. VAT
- Applicable on Beetle from 1961 (VIN 4 274 401) and later | Karmann Ghia from 1961 (VIN 4 274 401) and later | T2 Bay through 7.1975 | Type 3 | Trekker | Note: | only for fully synchronized gearboxes | Note: Fitment on Brazilian and Mexican buses is not guaranteed unless specifically stated.
- Paruzzi number: 1423
- Original VW number: 113311295D
Out of stock
Prices incl. VAT
- Applicable on Beetle: | VW 1200 and VW 1300 1972 until 1977 | 1302 sedan en convertible 1972 and later | 1303 sedan until 1975 | 1303 convertible until 1974 | Karmann Ghia: | 1972 and later | Bus: | 1972 until 7.1975 | Type 3: | 1972 and later | Thing: | 1.1972 until 2.1977 | Note: Fitment on Brazilian and Mexican buses is not guaranteed unless specifically stated.
- Paruzzi number: 1473
- Original VW number: 113311531C
38 items available
Prices incl. VAT
- Applicable on Beetle 1971 (112 2360 221) and later | Karmann Ghia 1971 (142 2360 221) and later | Thing 1.1972 and later
- Paruzzi number: 1540
- Original VW number: 113311541C
3 items available
Prices incl. VAT
- Applicable on Beetle 1972 (VIN 112 2562 383) and later | Karmann Ghia 1972 (VIN 142 2562 383) and later | Bus 8.1971 and later | Thing 1/1972 and later | Note: Fitment on Brazilian and Mexican buses is not guaranteed unless specifically stated.
- Paruzzi number: 3807
- Original VW number: 002311219B, 091311219
4 items available
Prices incl. VAT
- Applicable on Beetle 8.1960 until 7.1969 | Karmann Ghia 8.1960 until 7.1969 | Bus 8.1959 until 1968 (219 020 134) | Type 3 until 7.1969 | Note: Fitment on Brazilian and Mexican buses is not guaranteed unless specifically stated.
- Paruzzi number: 3810
- Original VW number: 113311125, 001311125
Out of stock
Prices incl. VAT
- Applicable on Beetle: | Automatic 1967 (VIN 118 071 440) and later | manual transmission 8.1969 and later | Karmann Ghia: | Automatic 1967 (VIN 148 071 440) and later | manual transmission 8.1969 and later | Bus: | 1968 (VIN 219 020 135) and later | Vanagon/T25: | rear: all models and years | front: Syncro | Type 3: | 8.1969 and later | Thing: | all years | Note: Fitment on Brazilian and Mexican buses is not guaranteed unless specifically stated.
- Paruzzi number: 3811
- Original VW number: 002311223A
80 items available
Prices incl. VAT
- Applicable on Beetle with a manual transmission 8.1960 until 7.1969 | Karmann Ghia with a manual transmission 8.1960 until 7.1969 | Bus 6.1959 until 7.1967 | Type 3 until 7.1969 | Note: Fitment on Brazilian and Mexican buses is not guaranteed unless specifically stated.
- Paruzzi number: 4705
- Original VW number: 113311219A
91 items available
Prices incl. VAT
- Applicable on Beetle 1971 (112 2360 221) and later | Karmann Ghia 1971 (142 2360 221) and later | Thing 1.1972 and later
- Paruzzi number: 6540
22 items available
Prices incl. VAT
- Applicable on Beetle from 1961 (VIN 4 274 401) and later | Karmann Ghia from 1961 (VIN 4 274 401) and later | T2 Bay through 7.1975 | Type 3 | Trekker | Note: | only for fully synchronized gearboxes | Note: Fitment on Brazilian and Mexican buses is not guaranteed unless specifically stated.
- Paruzzi number: 1423
- Original VW number: 113311295D
Out of stock
Prices incl. VAT

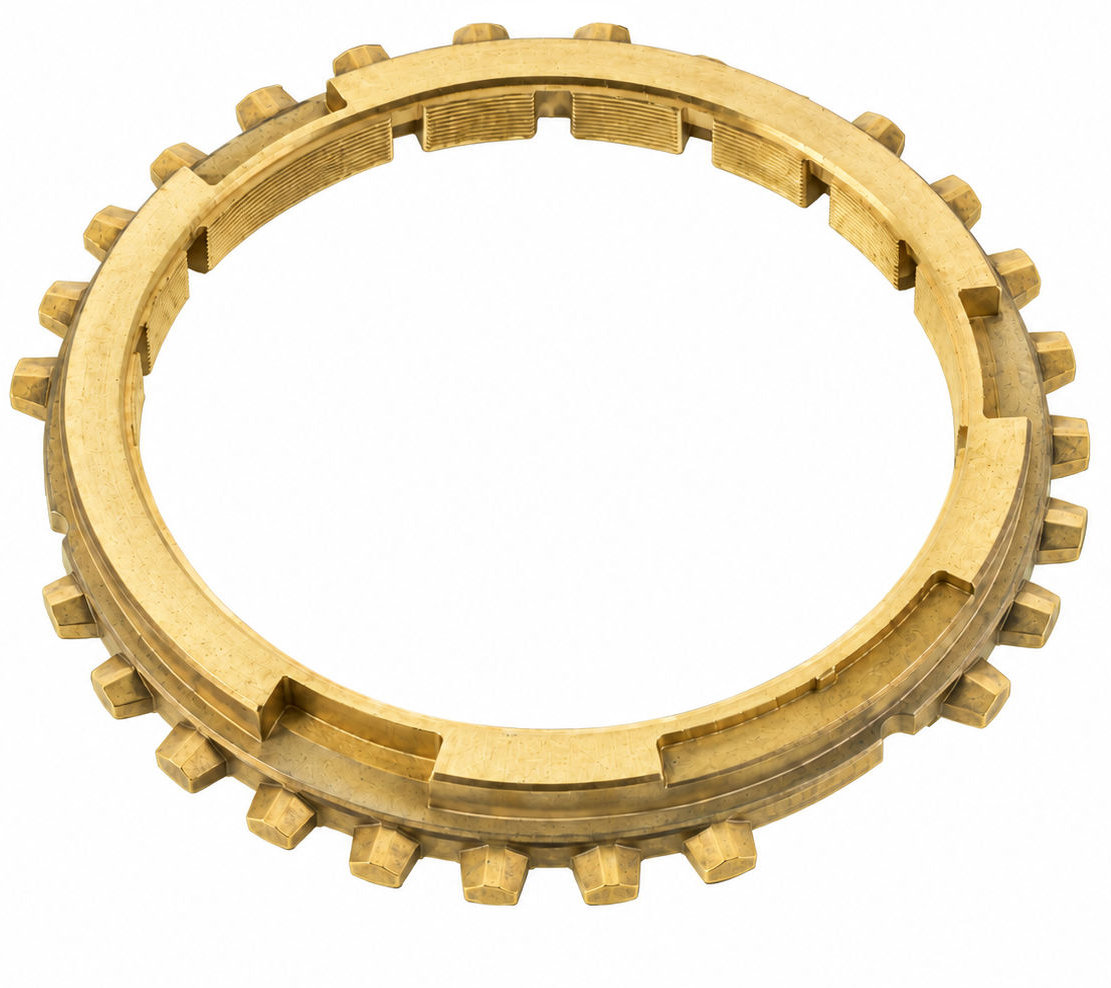

- Applicable on T2 Bay with manual gearbox: | from 8.1975 and later, 2nd, 3rd and 4th gear | T25: | 4-speed gearbox, 2nd, 3rd and 4th gear * | 5-speed gearbox, 2nd, 3rd, 4th and 5th gear * | * Also for 1st gear with suitable gearbox codes; consult your workshop manual. | Note: Fitment on Brazilian and Mexican buses is not guaranteed unless specifically stated.
- Paruzzi number: 1423-101
- Original VW number: 091311295A
46 items available
Prices incl. VAT
