Product description

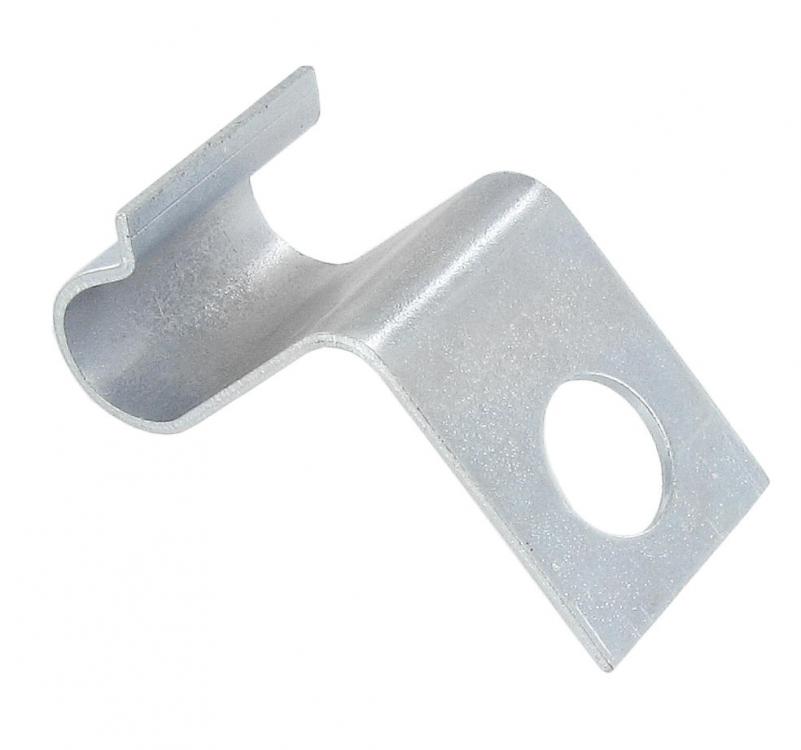

On cars with Type 1 engines, this clamp secures the metal fuel hose to the left-hand side of the fan shroud. On Type 3 engines, it is used to secure the fuel hose, of which there are two.
Don't forget that the fuel line on Type 1 engines must be fitted with a 25 mm hose to prevent damage. Take this extra if necessary, it's mentioned in the options tab.
If you own a 1200cc engine from 1976 onwards (engine number D 1 371 481), you won't come across this collar, as the fuel line is attached with the spark plug cables to the fan shroud. You'll find this collar in the "other models" tab.
This clamp was also used to secure the straight oil pump line on VW Beetles and Karmann Ghias with automatic gearboxes.
Fuel hose and fuel line clamp
92 items in stock
€1.75 (Each)
Prices incl. VAT
- Order before 3PM (CET)? Shipped the same day!
- Any questions? We're reachable until 17h (CET).
- VW specialist since 1989
- 30 days return period
Fuel line on fan shroud:
Beetle 1300, 1500 and 1600cc all years and 1200cc 8.1965 until 1976 (D 1 371 480)
Bus with Type-1 engine 6.1959 until 7.1979
Thing until 7.1970
Fuel hose:
Type-3
Right oil pump line automatic transmission:
Beetle
Karmann Ghia
Do you want to know where this part belongs? Consult the exploded view drawing.
View drawingSpecifications
| Paruzzi number | 4056 |
|---|---|
| Original VW number | 311127525 |
| Brand | Paruzzi |
| Freight | No |
