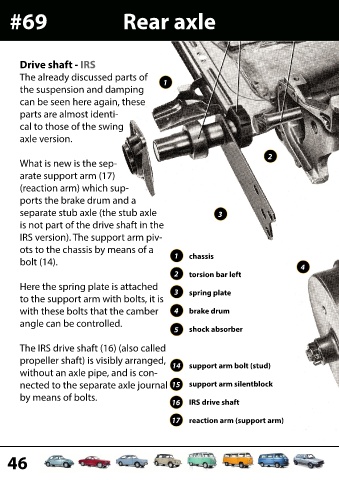

#69 Rear axle

Drive shaft - IRS

The already discussed parts of 1
the suspension and damping

can be seen here again, these

parts are almost identi-
cal to those of the swing

axle version.

2
What is new is the sep-

arate support arm (17)

(reaction arm) which sup-
ports the brake drum and a

separate stub axle (the stub axle 3

is not part of the drive shaft in the

IRS version). The support arm piv-
ots to the chassis by means of a

bolt (14). 1 chassis 4

2 torsion bar left
Here the spring plate is attached 3

to the support arm with bolts, it is spring plate

with these bolts that the camber 4 brake drum

angle can be controlled. shock absorber
5

The IRS drive shaft (16) (also called

propeller shaft) is visibly arranged, 14 support arm bolt (stud)
without an axle pipe, and is con-

nected to the separate axle journal 15 support arm silentblock

by means of bolts.
16 IRS drive shaft

17 reaction arm (support arm)
