swing axle and IRS

This roller bearing will not wear If this is not the case, the "open"
out so fast, it turns in a bath of roller bearing must be replaced

gearbox oil. The oil flows from by a "closed" roller bearing pro-

the gearbox through the axle vided with bearing grease.

pipe to the roller bearing. The
axle pipe tilts downwards on the

side of the wheel, if the height

of the car at the back is factory 6 drive shaft 7 stub axle
original.
8 shaft pipe

9 wheel bearing (roller bearing)

11 bearing flange

7 6

8

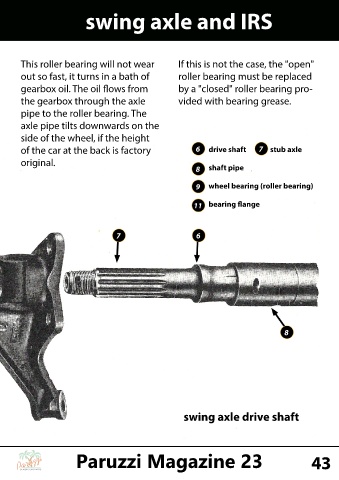

swing axle drive shaft
