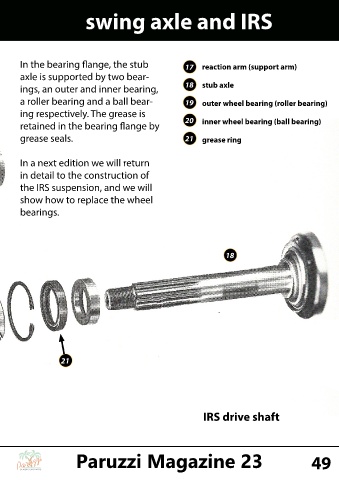

swing axle and IRS
In the bearing flange, the stub 17 reaction arm (support arm)
axle is supported by two bear-
ings, an outer and inner bearing, 18 stub axle
a roller bearing and a ball bear- 19 outer wheel bearing (roller bearing)
ing respectively. The grease is
retained in the bearing flange by 20 inner wheel bearing (ball bearing)
grease seals. 21 grease ring
In a next edition we will return
in detail to the construction of
the IRS suspension, and we will
show how to replace the wheel
bearings.
18
21
IRS drive shaft
