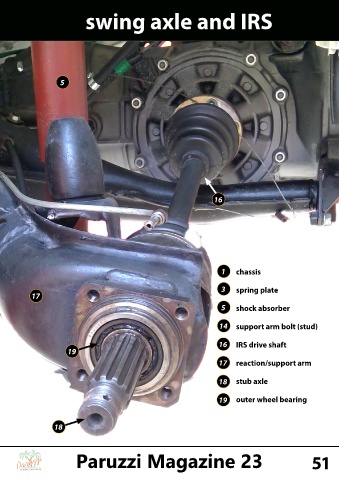

swing axle and IRS













                      5
























                                                                            16













                                                                               1    chassis

                                                                               3    spring plate
            17
                                                                               5    shock absorber

                                                                              14    support arm bolt (stud)

                                                                              16    IRS drive shaft
                         19
                                                                              17    reaction/support arm

                                                                              18    stub axle


                                                                              19    outer wheel bearing
