#69 Rear axle

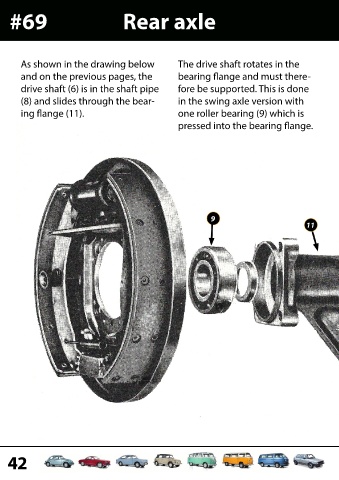

As shown in the drawing below The drive shaft rotates in the
and on the previous pages, the bearing flange and must there-

drive shaft (6) is in the shaft pipe fore be supported. This is done

(8) and slides through the bear- in the swing axle version with

ing flange (11). one roller bearing (9) which is
pressed into the bearing flange.
