#69 Rear axle

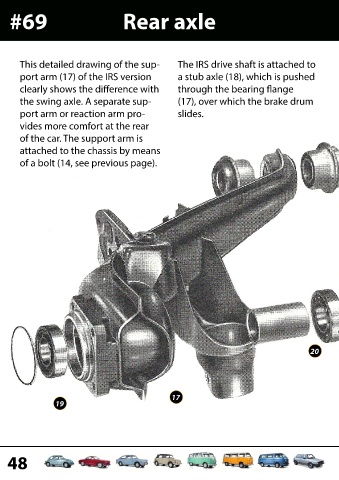

This detailed drawing of the sup- The IRS drive shaft is attached to
port arm (17) of the IRS version a stub axle (18), which is pushed

clearly shows the difference with through the bearing flange

the swing axle. A separate sup- (17), over which the brake drum

port arm or reaction arm pro- slides.
vides more comfort at the rear

of the car. The support arm is

attached to the chassis by means
of a bolt (14, see previous page).
