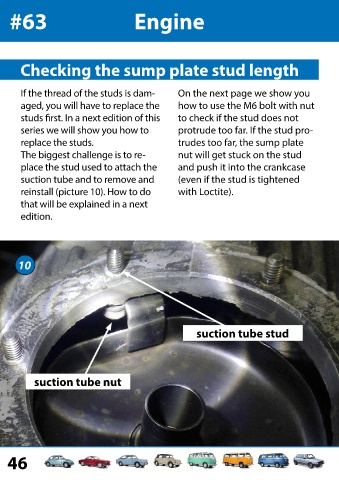

#63 Engine
Checking the sump plate stud length
If the thread of the studs is dam- On the next page we show you
aged, you will have to replace the how to use the M6 bolt with nut
studs first. In a next edition of this to check if the stud does not
series we will show you how to protrude too far. If the stud pro-
replace the studs. trudes too far, the sump plate
The biggest challenge is to re- nut will get stuck on the stud
place the stud used to attach the and push it into the crankcase
suction tube and to remove and (even if the stud is tightened
reinstall (picture 10). How to do with Loctite).
that will be explained in a next
edition.
10
suction tube stud
suction tube nut
