#63 Engine

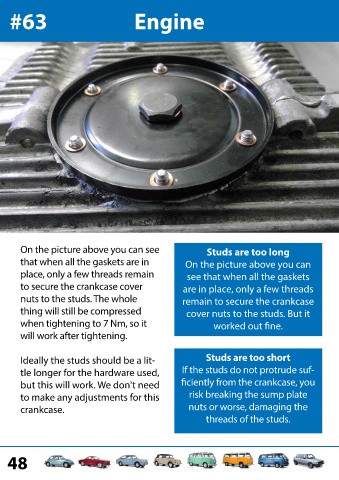

On the picture above you can see Studs are too long
that when all the gaskets are in On the picture above you can
place, only a few threads remain see that when all the gaskets
to secure the crankcase cover are in place, only a few threads
nuts to the studs. The whole remain to secure the crankcase
thing will still be compressed cover nuts to the studs. But it
when tightening to 7 Nm, so it worked out fine.
will work after tightening.
Ideally the studs should be a lit- Studs are too short
tle longer for the hardware used, If the studs do not protrude suf-
but this will work. We don't need ficiently from the crankcase, you
to make any adjustments for this risk breaking the sump plate
crankcase. nuts or worse, damaging the
threads of the studs.
