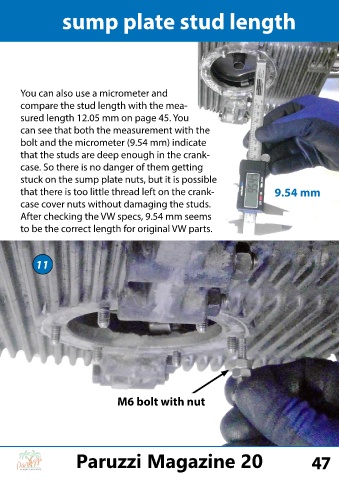

sump plate stud length

You can also use a micrometer and

compare the stud length with the mea-
sured length 12.05 mm on page 45. You

can see that both the measurement with the

bolt and the micrometer (9.54 mm) indicate
that the studs are deep enough in the crank-

case. So there is no danger of them getting

stuck on the sump plate nuts, but it is possible

that there is too little thread left on the crank- 9.54 mm
case cover nuts without damaging the studs.

After checking the VW specs, 9.54 mm seems

to be the correct length for original VW parts.

11

M6 bolt with nut
