sump plate stud length

Determine maximum stud depth

When you have bought a clas- Use the paper gaskets, the oil

sic VW, it will soon turn out if the screen and the sump plate that
studs of the sump plate have you will be using after the oil

been mounted at the correct change. As mentioned before,

depth. Make sure you do this there are differences in mate-
before fitting the sump plate If rial thickness depending on the

the studs are not installed cor- manufacturer. On the next page

rectly, you will have to remove we show all the parts we will use

the sump plate in no time and for our type 1 AB 1300 engine.
replace all gaskets again.

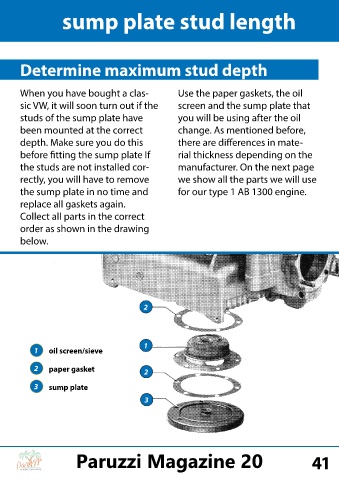

Collect all parts in the correct

order as shown in the drawing
below.

2

1
1 oil screen/sieve

2 paper gasket 2

3 sump plate

3
