#63 Engine

1

2 M6 bolt with nut
If you use two nuts

technique, it will be
easier to fix the setting.

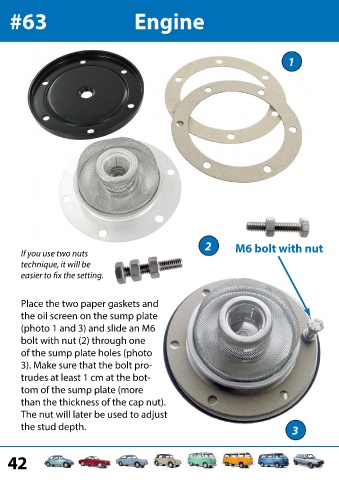

Place the two paper gaskets and

the oil screen on the sump plate
(photo 1 and 3) and slide an M6

bolt with nut (2) through one

of the sump plate holes (photo

3). Make sure that the bolt pro-
trudes at least 1 cm at the bot-

tom of the sump plate (more

than the thickness of the cap nut).

The nut will later be used to adjust
the stud depth. 3
