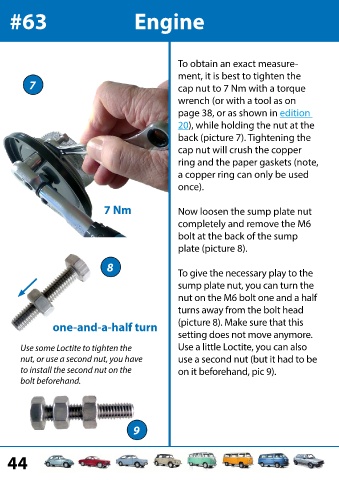

#63 Engine

To obtain an exact measure-

ment, it is best to tighten the
7 cap nut to 7 Nm with a torque

wrench (or with a tool as on
page 38, or as shown in edition

20), while holding the nut at the

back (picture 7). Tightening the

cap nut will crush the copper
ring and the paper gaskets (note,

a copper ring can only be used

once).

7 Nm Now loosen the sump plate nut

completely and remove the M6
bolt at the back of the sump

plate (picture 8).

8
To give the necessary play to the

sump plate nut, you can turn the

nut on the M6 bolt one and a half
turns away from the bolt head

one-and-a-half turn (picture 8). Make sure that this
setting does not move anymore.

Use some Loctite to tighten the Use a little Loctite, you can also

nut, or use a second nut, you have use a second nut (but it had to be
to install the second nut on the on it beforehand, pic 9).
bolt beforehand.

9
