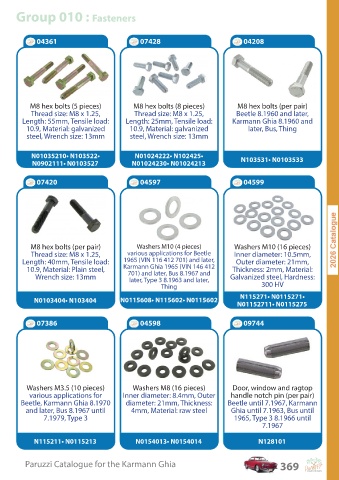

Page 369 - Paruzzi parts catalogue for the Volkswagen Karmann Ghia
P. 369
Group 010 : Fasteners
04361 07428 04208
M8 hex bolts (5 pieces) M8 hex bolts (8 pieces) M8 hex bolts (per pair)
Thread size: M8 x 1.25, Thread size: M8 x 1.25, Beetle 8.1960 and later,
Length: 55mm, Tensile load: Length: 25mm, Tensile load: Karmann Ghia 8.1960 and
10.9, Material: galvanized 10.9, Material: galvanized later, Bus, Thing
steel, Wrench size: 13mm steel, Wrench size: 13mm
N01035210• N103522• N01024222• N102425• N103531• N0103533
N0902111• N0103527 N01024230• N01024213
07420 04597 04599
M8 hex bolts (per pair) Washers M10 (4 pieces) Washers M10 (16 pieces)
Thread size: M8 x 1.25, various applications for Beetle Inner diameter: 10.5mm,
Length: 40mm, Tensile load: 1965 (VIN 116 412 701) and later, Outer diameter: 21mm,
10.9, Material: Plain steel, Karmann Ghia 1965 (VIN 146 412 Thickness: 2mm, Material:
Wrench size: 13mm 701) and later, Bus 8.1967 and Galvanized steel, Hardness:
later, Type 3 8.1963 and later,
Thing 300 HV
N0103404• N103404 N0115608• N115602• N0115602 N115271• N0115271•
N01152711• N0115275
07386 04598 09744
Washers M3.5 (10 pieces) Washers M8 (16 pieces) Door, window and ragtop
various applications for Inner diameter: 8.4mm, Outer handle notch pin (per pair)
Beetle, Karmann Ghia 8.1970 diameter: 21mm, Thickness: Beetle until 7.1967, Karmann
and later, Bus 8.1967 until 4mm, Material: raw steel Ghia until 7.1963, Bus until
7.1979, Type 3 1965, Type 3 8.1966 until
7.1967
N115211• N0115213 N0154013• N0154014 N128101
P aruzzi C a talogue f or the K ar mann Ghia 369
Paruzzi Catalogue for the Karmann Ghia
369
