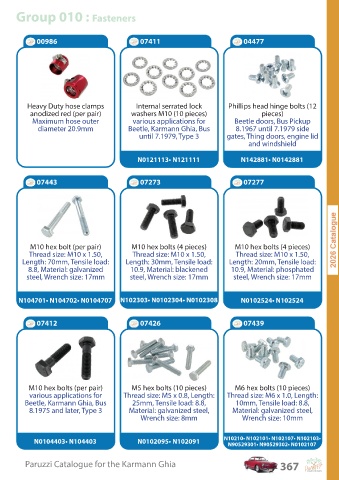

Page 367 - Paruzzi parts catalogue for the Volkswagen Karmann Ghia
P. 367
Group 010 : Fasteners
00986 07411 04477
Heavy Duty hose clamps Internal serrated lock Phillips head hinge bolts (12
anodized red (per pair) washers M10 (10 pieces) pieces)
Maximum hose outer various applications for Beetle doors, Bus Pickup
diameter 20.9mm Beetle, Karmann Ghia, Bus 8.1967 until 7.1979 side
until 7.1979, Type 3 gates, Thing doors, engine lid
and windshield
N0121113• N121111 N142881• N0142881
07443 07273 07277
M10 hex bolt (per pair) M10 hex bolts (4 pieces) M10 hex bolts (4 pieces)
Thread size: M10 x 1.50, Thread size: M10 x 1.50, Thread size: M10 x 1.50,
Length: 70mm, Tensile load: Length: 30mm, Tensile load: Length: 20mm, Tensile load:
8.8, Material: galvanized 10.9, Material: blackened 10.9, Material: phosphated
steel, Wrench size: 17mm steel, Wrench size: 17mm steel, Wrench size: 17mm
N104701• N104702• N0104707 N102303• N0102304• N0102308 N0102524• N102524
07412 07426 07439
M10 hex bolts (per pair) M5 hex bolts (10 pieces) M6 hex bolts (10 pieces)
various applications for Thread size: M5 x 0.8, Length: Thread size: M6 x 1.0, Length:
Beetle, Karmann Ghia, Bus 25mm, Tensile load: 8.8, 10mm, Tensile load: 8.8,
8.1975 and later, Type 3 Material: galvanized steel, Material: galvanized steel,
Wrench size: 8mm Wrench size: 10mm
N0104403• N104403 N0102095• N102091 N10210• N102101• N102107• N102103•
N90529301• N90529302• N0102107
Paruzzi Catalogue for the Karmann Ghia
P aruzzi C a talogue f or the K ar mann Ghia 367
367
