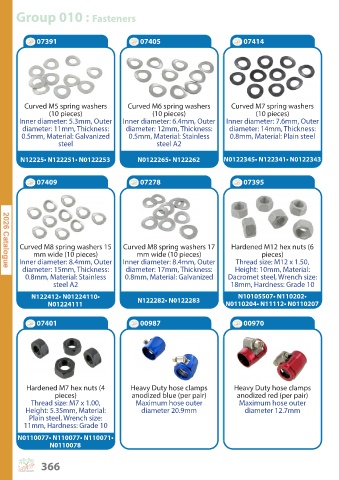

Page 366 - Paruzzi parts catalogue for the Volkswagen Karmann Ghia

Group 010 : Fasteners

07391 07405 07414

Curved M5 spring washers Curved M6 spring washers Curved M7 spring washers
(10 pieces) (10 pieces) (10 pieces)
Inner diameter: 5.3mm, Outer Inner diameter: 6.4mm, Outer Inner diameter: 7.6mm, Outer
diameter: 11mm, Thickness: diameter: 12mm, Thickness: diameter: 14mm, Thickness:
0.5mm, Material: Galvanized 0.5mm, Material: Stainless 0.8mm, Material: Plain steel
steel steel A2

N12225• N122251• N0122253 N0122265• N122262 N0122345• N122341• N0122343

07409 07278 07395

Curved M8 spring washers 15 Curved M8 spring washers 17 Hardened M12 hex nuts (6
mm wide (10 pieces) mm wide (10 pieces) pieces)
Inner diameter: 8.4mm, Outer Inner diameter: 8.4mm, Outer Thread size: M12 x 1.50,
diameter: 15mm, Thickness: diameter: 17mm, Thickness: Height: 10mm, Material:
0.8mm, Material: Stainless 0.8mm, Material: Galvanized Dacromet steel, Wrench size:
steel A2 18mm, Hardness: Grade 10

N122412• N01224110• N122282• N0122283 N10105507• N110202•
N01224111 N0110204• N11112• N0110207

07401 00987 00970

Hardened M7 hex nuts (4 Heavy Duty hose clamps Heavy Duty hose clamps
pieces) anodized blue (per pair) anodized red (per pair)
Thread size: M7 x 1.00, Maximum hose outer Maximum hose outer
Height: 5.35mm, Material: diameter 20.9mm diameter 12.7mm
Plain steel, Wrench size:
11mm, Hardness: Grade 10

N0110077• N110077• N110071•
N0110078

366
