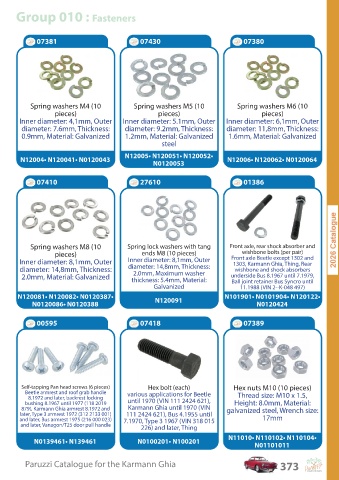

Page 373 - Paruzzi parts catalogue for the Volkswagen Karmann Ghia

Group 010 : Fasteners

07381 07430 07380

Spring washers M4 (10 Spring washers M5 (10 Spring washers M6 (10
pieces) pieces) pieces)
Inner diameter: 4,1mm, Outer Inner diameter: 5.1mm, Outer Inner diameter: 6,1mm, Outer
diameter: 7.6mm, Thickness: diameter: 9.2mm, Thickness: diameter: 11,8mm, Thickness:
0.9mm, Material: Galvanized 1.2mm, Material: Galvanized 1.6mm, Material: Galvanized
steel

N12005• N120051• N120052•
N12004• N120041• N0120043 N12006• N120062• N0120064
N0120053

07410 27610 01386

Spring washers M8 (10 Spring lock washers with tang Front axle, rear shock absorber and
pieces) ends M8 (10 pieces) wishbone bolts (per pair)
Inner diameter: 8,1mm, Outer Inner diameter: 8,1mm, Outer Front axle Beetle except 1302 and
1303, Karmann Ghia, Thing, Rear
diameter: 14,8mm, Thickness: diameter: 14,8mm, Thickness: wishbone and shock absorbers
2.0mm, Maximum washer
2.0mm, Material: Galvanized thickness: 5.4mm, Material: underside Bus 8.1967 until 7.1979,
Ball joint retainer Bus Syncro until
Galvanized 11.1988 (VIN 2--K-048 497)
N120081• N120082• N0120387• N120091 N101901• N0101904• N120122•
N0120086• N0120388 N0120424

00595 07418 07389

Self-tapping Pan head screws (6 pieces) Hex bolt (each) Hex nuts M10 (10 pieces)
Beetle armrest and roof grab handle various applications for Beetle Thread size: M10 x 1.5,
8.1972 and later, backrest locking
bushing 8.1967 until 1977 (118 2019 until 1970 (VIN 111 2424 621), Height: 8.0mm, Material:
879), Karmann Ghia armrest 8.1972 and Karmann Ghia until 1970 (VIN galvanized steel, Wrench size:
later, Type 3 armrest 1972 (312 2133 001) 111 2424 621), Bus 4.1955 until
and later, Bus armrest 1975 (216 000 023) 7.1970, Type 3 1967 (VIN 318 015 17mm
and later, Vanagon/T25 door pull handle
226) and later, Thing

N0139461• N139461 N0100201• N100201 N11010• N110102• N110104•
N01101011

mann Ghia
aruzzi C
P
Paruzzi Catalogue for the Karmann Ghia 373
