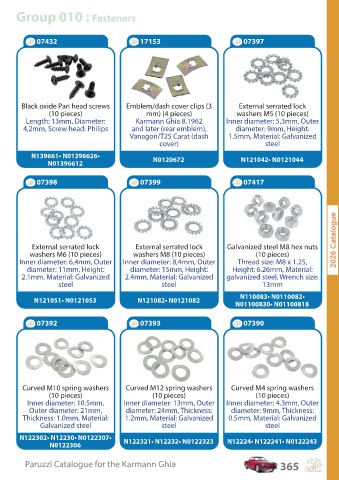

Page 365 - Paruzzi parts catalogue for the Volkswagen Karmann Ghia
P. 365
Group 010 : Fasteners
07432 17153 07397
Black oxide Pan head screws Emblem/dash cover clips (3 External serrated lock
(10 pieces) mm) (4 pieces) washers M5 (10 pieces)
Length: 13mm, Diameter: Karmann Ghia 8.1962 Inner diameter: 5,3mm, Outer
4,2mm, Screw head: Philips and later (rear emblem), diameter: 9mm, Height:
Vanagon/T25 Carat (dash 1.5mm, Material: Galvanized
cover) steel
N139661• N01396626• N0120672 N121042• N0121044
N01396612
07398 07399 07417
External serrated lock External serrated lock Galvanized steel M8 hex nuts
washers M6 (10 pieces) washers M8 (10 pieces) (10 pieces)
Inner diameter: 6,4mm, Outer Inner diameter: 8,4mm, Outer Thread size: M8 x 1.25,
diameter: 11mm, Height: diameter: 15mm, Height: Height: 6.26mm, Material:
2.1mm, Material: Galvanized 2.4mm, Material: Galvanized galvanized steel, Wrench size:
steel steel 13mm
N110083• N0110082•
N121051• N0121053 N121082• N0121082
N01100830• N01100818
07392 07393 07390
Curved M10 spring washers Curved M12 spring washers Curved M4 spring washers
(10 pieces) (10 pieces) (10 pieces)
Inner diameter: 10.5mm, Inner diameter: 13mm, Outer Inner diameter: 4.3mm, Outer
Outer diameter: 21mm, diameter: 24mm, Thickness: diameter: 9mm, Thickness:
Thickness: 1.0mm, Material: 1.2mm, Material: Galvanized 0.5mm, Material: Galvanized
Galvanized steel steel steel
N122302• N12230• N0122307• N122321• N12232• N0122323 N12224• N122241• N0122243
N0122306
