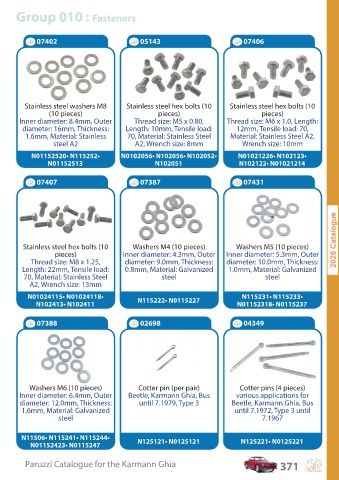

Page 371 - Paruzzi parts catalogue for the Volkswagen Karmann Ghia
P. 371
Group 010 : Fasteners
07402 05143 07406
Stainless steel washers M8 Stainless steel hex bolts (10 Stainless steel hex bolts (10
(10 pieces) pieces) pieces)
Inner diameter: 8.4mm, Outer Thread size: M5 x 0.80, Thread size: M6 x 1.0, Length:
diameter: 16mm, Thickness: Length: 10mm, Tensile load: 12mm, Tensile load: 70,
1.6mm, Material: Stainless 70, Material: Stainless Steel Material: Stainless Steel A2,
steel A2 A2, Wrench size: 8mm Wrench size: 10mm
N01152520• N115252• N0102056• N102056• N102052• N01021226• N102123•
N01152513 N102051 N102122• N01021214
07407 07387 07431
Stainless steel hex bolts (10 Washers M4 (10 pieces) Washers M5 (10 pieces)
pieces) Inner diameter: 4.3mm, Outer Inner diameter: 5.3mm, Outer
Thread size: M8 x 1.25, diameter: 9.0mm, Thickness: diameter: 10.0mm, Thickness:
Length: 22mm, Tensile load: 0.8mm, Material: Galvanized 1.0mm, Material: Galvanized
70, Material: Stainless Steel steel steel
A2, Wrench size: 13mm
N01024115• N01024118• N115222• N0115227 N115231• N115233•
N102413• N102411 N01152318• N0115237
07388 02698 04349
Washers M6 (10 pieces) Cotter pin (per pair) Cotter pins (4 pieces)
Inner diameter: 6.4mm, Outer Beetle, Karmann Ghia, Bus various applications for
diameter: 12.0mm, Thickness: until 7.1979, Type 3 Beetle, Karmann Ghia, Bus
1.6mm, Material: Galvanized until 7.1972, Type 3 until
steel 7.1967
N11506• N115241• N115244• N125121• N0125121 N125221• N0125221
N01152423• N0115247
P aruzzi C a talogue f or the K ar mann Ghia 371
Paruzzi Catalogue for the Karmann Ghia
371
