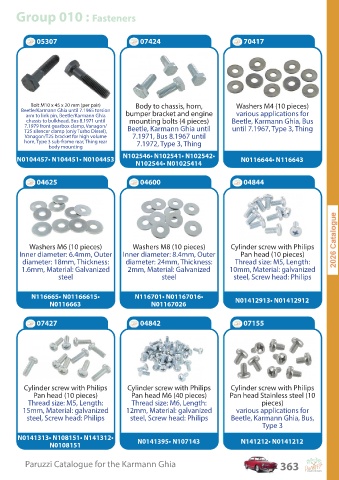

Page 363 - Paruzzi parts catalogue for the Volkswagen Karmann Ghia

Group 010 : Fasteners

05307 07424 70417

Bolt M10 x 45 x 20 mm (per pair) Body to chassis, horn, Washers M4 (10 pieces)
Beetle/Karmann Ghia until 7.1965 torsion
arm to link pin, Beetle/Karmann Ghia bumper bracket and engine various applications for
chassis to bulkhead, Bus 8.1971 until mounting bolts (4 pieces) Beetle, Karmann Ghia, Bus
7.1979 front gearbox clamp, Vanagon/ Beetle, Karmann Ghia until until 7.1967, Type 3, Thing
T25 silencer clamp (only Turbo Diesel),
Vanagon/T25 bracket for high volume 7.1971, Bus 8.1967 until
horn, Type 3 sub-frame rear, Thing rear 7.1972, Type 3, Thing
body mounting
N102546• N102541• N102542•
N0104457• N104451• N0104453 N0116644• N116643
N102544• N01025414

04625 04600 04844

Washers M6 (10 pieces) Washers M8 (10 pieces) Cylinder screw with Philips
Inner diameter: 6.4mm, Outer Inner diameter: 8.4mm, Outer Pan head (10 pieces)
diameter: 18mm, Thickness: diameter: 24mm, Thickness: Thread size: M5, Length:
1.6mm, Material: Galvanized 2mm, Material: Galvanized 10mm, Material: galvanized
steel steel steel, Screw head: Philips

N116665• N01166615• N116701• N01167016• N01412913• N01412912
N0116663 N01167026

07427 04842 07155

Cylinder screw with Philips Cylinder screw with Philips Cylinder screw with Philips
Pan head (10 pieces) Pan head M6 (40 pieces) Pan head Stainless steel (10
Thread size: M5, Length: Thread size: M6, Length: pieces)
15mm, Material: galvanized 12mm, Material: galvanized various applications for
steel, Screw head: Philips steel, Screw head: Philips Beetle, Karmann Ghia, Bus,
Type 3

N0141313• N108151• N141312• N0141395• N107143 N141212• N0141212
N0108151

P aruzzi C a talogue f or the K ar mann Ghia 363
Paruzzi Catalogue for the Karmann Ghia
363
