brake disassembly

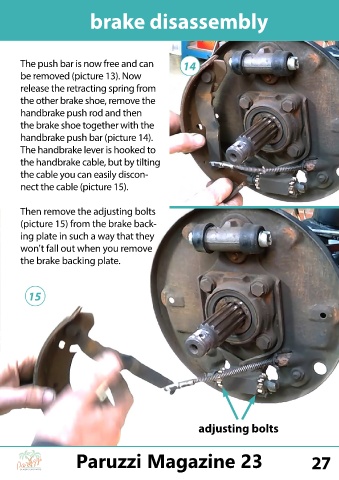

The push bar is now free and can 14

be removed (picture 13). Now

release the retracting spring from

the other brake shoe, remove the
handbrake push rod and then

the brake shoe together with the

handbrake push bar (picture 14).

The handbrake lever is hooked to
the handbrake cable, but by tilting

the cable you can easily discon-

nect the cable (picture 15).

Then remove the adjusting bolts

(picture 15) from the brake back-
ing plate in such a way that they

won't fall out when you remove

the brake backing plate.

15

adjusting bolts
