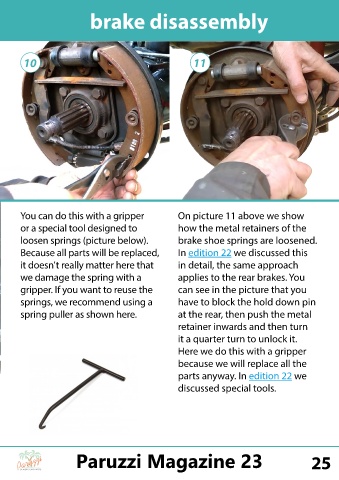

brake disassembly
10 11
You can do this with a gripper On picture 11 above we show
or a special tool designed to how the metal retainers of the
loosen springs (picture below). brake shoe springs are loosened.
Because all parts will be replaced, In edition 22 we discussed this
it doesn't really matter here that in detail, the same approach
we damage the spring with a applies to the rear brakes. You
gripper. If you want to reuse the can see in the picture that you
springs, we recommend using a have to block the hold down pin
spring puller as shown here. at the rear, then push the metal
retainer inwards and then turn
it a quarter turn to unlock it.
Here we do this with a gripper
because we will replace all the
parts anyway. In edition 22 we
discussed special tools.
