#68 Brakes

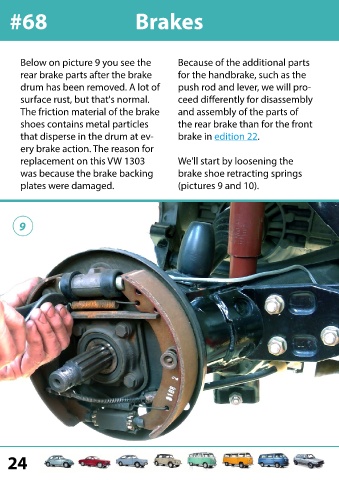

Below on picture 9 you see the Because of the additional parts
rear brake parts after the brake for the handbrake, such as the
drum has been removed. A lot of push rod and lever, we will pro-
surface rust, but that's normal. ceed differently for disassembly
The friction material of the brake and assembly of the parts of
shoes contains metal particles the rear brake than for the front
that disperse in the drum at ev- brake in edition 22.
ery brake action. The reason for
replacement on this VW 1303 We'll start by loosening the
was because the brake backing brake shoe retracting springs
plates were damaged. (pictures 9 and 10).
9
