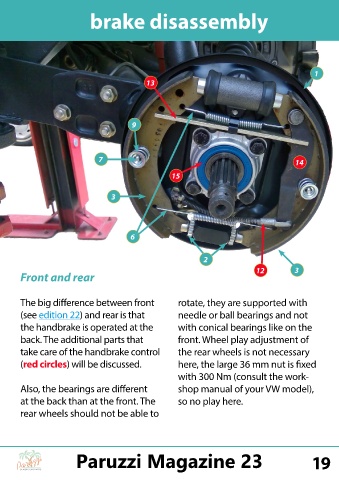

brake disassembly

1
13

9

7 14

15

3

6

2
12 3
Front and rear

The big difference between front rotate, they are supported with

(see edition 22) and rear is that needle or ball bearings and not
the handbrake is operated at the with conical bearings like on the

back. The additional parts that front. Wheel play adjustment of

take care of the handbrake control the rear wheels is not necessary
(red circles) will be discussed. here, the large 36 mm nut is fixed

with 300 Nm (consult the work-

Also, the bearings are different shop manual of your VW model),
at the back than at the front. The so no play here.

rear wheels should not be able to
