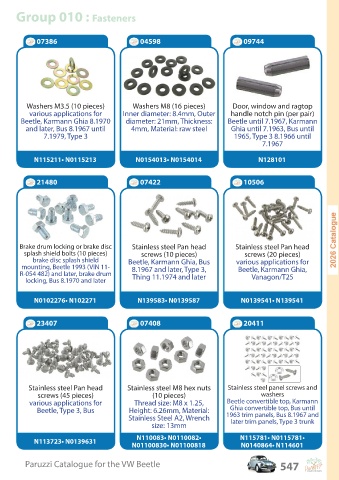

Page 547 - beetle
P. 547
Group 010 : Fasteners
07386 04598 09744
Washers M3.5 (10 pieces) Washers M8 (16 pieces) Door, window and ragtop
various applications for Inner diameter: 8.4mm, Outer handle notch pin (per pair)
Beetle, Karmann Ghia 8.1970 diameter: 21mm, Thickness: Beetle until 7.1967, Karmann
and later, Bus 8.1967 until 4mm, Material: raw steel Ghia until 7.1963, Bus until
7.1979, Type 3 1965, Type 3 8.1966 until
7.1967
N115211• N0115213 N0154013• N0154014 N128101
21480 07422 10506
Brake drum locking or brake disc Stainless steel Pan head Stainless steel Pan head
splash shield bolts (10 pieces) screws (10 pieces) screws (20 pieces)
brake disc splash shield Beetle, Karmann Ghia, Bus various applications for
mounting, Beetle 1993 (VIN 11- 8.1967 and later, Type 3, Beetle, Karmann Ghia,
R-054 482) and later, brake drum Thing 11.1974 and later Vanagon/T25
locking, Bus 8.1970 and later
N0102276• N102271 N139583• N0139587 N0139541• N139541
23407 07408 20411
Stainless steel Pan head Stainless steel M8 hex nuts Stainless steel panel screws and
screws (45 pieces) (10 pieces) washers
various applications for Thread size: M8 x 1.25, Beetle convertible top, Karmann
Beetle, Type 3, Bus Height: 6.26mm, Material: Ghia convertible top, Bus until
Stainless Steel A2, Wrench 1963 trim panels, Bus 8.1967 and
size: 13mm later trim panels, Type 3 trunk
N113723• N0139631 N110083• N0110082• N115781• N0115781•
N01100830• N01100818 N0140864• N114601
aruzzi C
Paruzzi Catalogue for the VW Beetle 547
