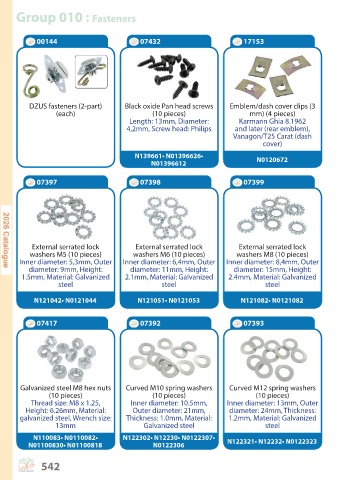

Page 542 - beetle

Group 010 : Fasteners

00144 07432 17153

DZUS fasteners (2-part) Black oxide Pan head screws Emblem/dash cover clips (3
(each) (10 pieces) mm) (4 pieces)
Length: 13mm, Diameter: Karmann Ghia 8.1962
4,2mm, Screw head: Philips and later (rear emblem),
Vanagon/T25 Carat (dash
cover)

N139661• N01396626• N0120672
N01396612

07397 07398 07399

External serrated lock External serrated lock External serrated lock
washers M5 (10 pieces) washers M6 (10 pieces) washers M8 (10 pieces)
Inner diameter: 5,3mm, Outer Inner diameter: 6,4mm, Outer Inner diameter: 8,4mm, Outer
diameter: 9mm, Height: diameter: 11mm, Height: diameter: 15mm, Height:
1.5mm, Material: Galvanized 2.1mm, Material: Galvanized 2.4mm, Material: Galvanized
steel steel steel

N121042• N0121044 N121051• N0121053 N121082• N0121082

07417 07392 07393

Galvanized steel M8 hex nuts Curved M10 spring washers Curved M12 spring washers
(10 pieces) (10 pieces) (10 pieces)
Thread size: M8 x 1.25, Inner diameter: 10.5mm, Inner diameter: 13mm, Outer
Height: 6.26mm, Material: Outer diameter: 21mm, diameter: 24mm, Thickness:
galvanized steel, Wrench size: Thickness: 1.0mm, Material: 1.2mm, Material: Galvanized
13mm Galvanized steel steel

N110083• N0110082• N122302• N12230• N0122307• N122321• N12232• N0122323
N01100830• N01100818 N0122306

542
