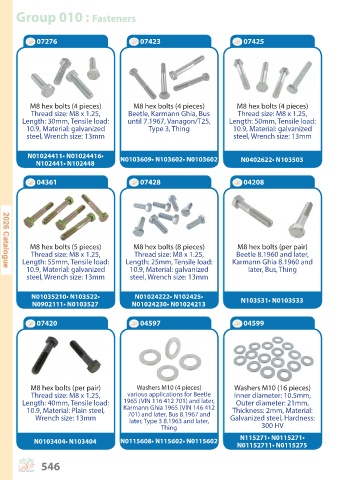

P. 546
Group 010 : Fasteners
07276 07423 07425
M8 hex bolts (4 pieces) M8 hex bolts (4 pieces) M8 hex bolts (4 pieces)
Thread size: M8 x 1.25, Beetle, Karmann Ghia, Bus Thread size: M8 x 1.25,
Length: 30mm, Tensile load: until 7.1967, Vanagon/T25, Length: 50mm, Tensile load:
10.9, Material: galvanized Type 3, Thing 10.9, Material: galvanized
steel, Wrench size: 13mm steel, Wrench size: 13mm
N01024411• N01024416• N0103609• N103602• N0103602 N0402622• N103503
N102441• N102448
04361 07428 04208
M8 hex bolts (5 pieces) M8 hex bolts (8 pieces) M8 hex bolts (per pair)
Thread size: M8 x 1.25, Thread size: M8 x 1.25, Beetle 8.1960 and later,
Length: 55mm, Tensile load: Length: 25mm, Tensile load: Karmann Ghia 8.1960 and
10.9, Material: galvanized 10.9, Material: galvanized later, Bus, Thing
steel, Wrench size: 13mm steel, Wrench size: 13mm
N01035210• N103522• N01024222• N102425• N103531• N0103533
N0902111• N0103527 N01024230• N01024213
07420 04597 04599
M8 hex bolts (per pair) Washers M10 (4 pieces) Washers M10 (16 pieces)
Thread size: M8 x 1.25, various applications for Beetle Inner diameter: 10.5mm,
Length: 40mm, Tensile load: 1965 (VIN 116 412 701) and later, Outer diameter: 21mm,
10.9, Material: Plain steel, Karmann Ghia 1965 (VIN 146 412 Thickness: 2mm, Material:
Wrench size: 13mm 701) and later, Bus 8.1967 and Galvanized steel, Hardness:
later, Type 3 8.1963 and later,
Thing 300 HV
N0103404• N103404 N0115608• N115602• N0115602 N115271• N0115271•
N01152711• N0115275
