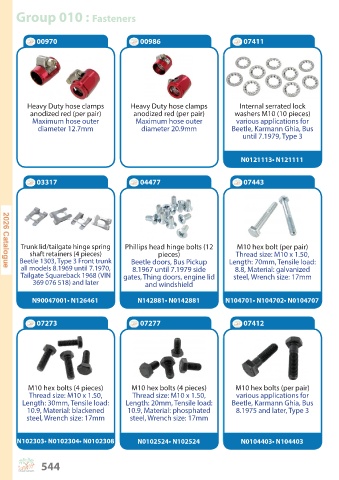

P. 544
Group 010 : Fasteners
00970 00986 07411
Heavy Duty hose clamps Heavy Duty hose clamps Internal serrated lock
anodized red (per pair) anodized red (per pair) washers M10 (10 pieces)
Maximum hose outer Maximum hose outer various applications for
diameter 12.7mm diameter 20.9mm Beetle, Karmann Ghia, Bus
until 7.1979, Type 3
N0121113• N121111
03317 04477 07443
Trunk lid/tailgate hinge spring Phillips head hinge bolts (12 M10 hex bolt (per pair)
shaft retainers (4 pieces) pieces) Thread size: M10 x 1.50,
Beetle 1303, Type 3 Front trunk Beetle doors, Bus Pickup Length: 70mm, Tensile load:
all models 8.1969 until 7.1970, 8.1967 until 7.1979 side 8.8, Material: galvanized
Tailgate Squareback 1968 (VIN gates, Thing doors, engine lid steel, Wrench size: 17mm
369 076 518) and later and windshield
N90047001• N126461 N142881• N0142881 N104701• N104702• N0104707
07273 07277 07412
M10 hex bolts (4 pieces) M10 hex bolts (4 pieces) M10 hex bolts (per pair)
Thread size: M10 x 1.50, Thread size: M10 x 1.50, various applications for
Length: 30mm, Tensile load: Length: 20mm, Tensile load: Beetle, Karmann Ghia, Bus
10.9, Material: blackened 10.9, Material: phosphated 8.1975 and later, Type 3
steel, Wrench size: 17mm steel, Wrench size: 17mm
N102303• N0102304• N0102308 N0102524• N102524 N0104403• N104403
