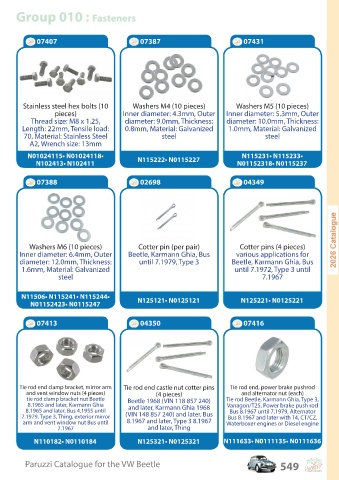

Page 549 - beetle
P. 549
Group 010 : Fasteners
07407 07387 07431
Stainless steel hex bolts (10 Washers M4 (10 pieces) Washers M5 (10 pieces)
pieces) Inner diameter: 4.3mm, Outer Inner diameter: 5.3mm, Outer
Thread size: M8 x 1.25, diameter: 9.0mm, Thickness: diameter: 10.0mm, Thickness:
Length: 22mm, Tensile load: 0.8mm, Material: Galvanized 1.0mm, Material: Galvanized
70, Material: Stainless Steel steel steel
A2, Wrench size: 13mm
N01024115• N01024118• N115222• N0115227 N115231• N115233•
N102413• N102411 N01152318• N0115237
07388 02698 04349
Washers M6 (10 pieces) Cotter pin (per pair) Cotter pins (4 pieces)
Inner diameter: 6.4mm, Outer Beetle, Karmann Ghia, Bus various applications for
diameter: 12.0mm, Thickness: until 7.1979, Type 3 Beetle, Karmann Ghia, Bus
1.6mm, Material: Galvanized until 7.1972, Type 3 until
steel 7.1967
N11506• N115241• N115244• N125121• N0125121 N125221• N0125221
N01152423• N0115247
07413 04350 07416
Tie rod end clamp bracket, mirror arm Tie rod end castle nut cotter pins Tie rod end, power brake pushrod
and vent window nuts (4 pieces) (4 pieces) and alternator nut (each)
tie rod clamp bracket nut Beetle Beetle 1968 (VIN 118 857 240) Tie rod Beetle, Karmann Ghia, Type 3,
8.1965 and later, Karmann Ghia Vanagon/T25, Power brake push rod
8.1965 and later, Bus 4.1955 until and later, Karmann Ghia 1968 Bus 8.1967 until 7.1979, Alternator
7.1979, Type 3, Thing, exterior mirror (VIN 148 857 240) and later, Bus Bus 8.1967 and later with T4, CT/CZ,
arm and vent window nut Bus until 8.1967 and later, Type 3 8.1967 Waterboxer engines or Diesel engine
7.1967 and later, Thing
N110182• N0110184 N125321• N0125321 N111633• N0111135• N0111636
Paruzzi Catalogue for the VW Beetle
P aruzzi C a talogue f or the V W B eetle 549
549
