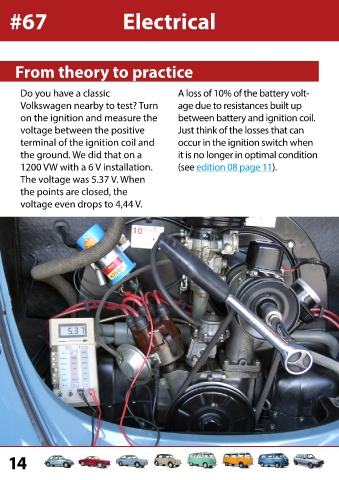

#67 Electrical voltage drops
From theory to practice
Do you have a classic A loss of 10% of the battery volt-
Volkswagen nearby to test? Turn age due to resistances built up
on the ignition and measure the between battery and ignition coil.
voltage between the positive Just think of the losses that can
terminal of the ignition coil and occur in the ignition switch when
the ground. We did that on a it is no longer in optimal condition
1200 VW with a 6 V installation. (see edition 08 page 11).
The voltage was 5.37 V. When
the points are closed, the
voltage even drops to 4,44 V.
