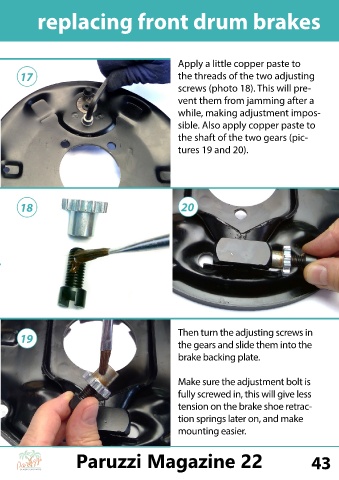

replacing front drum brakes

Apply a little copper paste to

17 the threads of the two adjusting

screws (photo 18). This will pre-

vent them from jamming after a
while, making adjustment impos-

sible. Also apply copper paste to

the shaft of the two gears (pic-

tures 19 and 20).

18 20

19 Then turn the adjusting screws in
the gears and slide them into the

brake backing plate.

Make sure the adjustment bolt is

fully screwed in, this will give less

tension on the brake shoe retrac-
tion springs later on, and make

mounting easier.
