replacing front drum brakes

correct

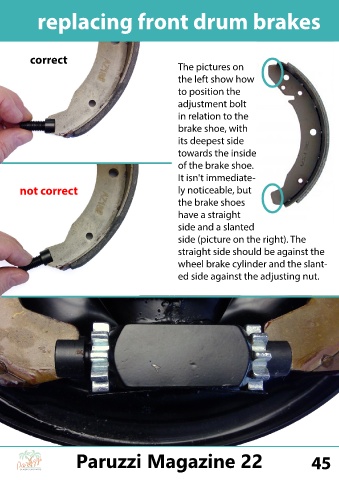

The pictures on

the left show how

to position the
adjustment bolt

in relation to the

brake shoe, with

its deepest side
towards the inside

of the brake shoe.

It isn't immediate-
not correct ly noticeable, but

the brake shoes

have a straight
side and a slanted

side (picture on the right). The

straight side should be against the
wheel brake cylinder and the slant-

ed side against the adjusting nut.
