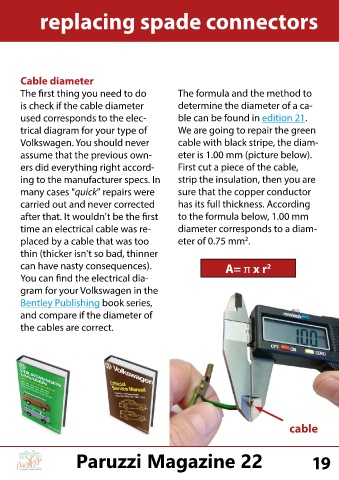

replacing spade connectors
Cable diameter
The first thing you need to do
is check if the cable diameter
used corresponds to the elec-
trical diagram for your type of
Volkswagen. You should never
assume that the previous own-
ers did everything right accord-
ing to the manufacturer specs. In
many cases "quick" repairs were
carried out and never corrected
after that. It wouldn't be the first
time an electrical cable was re-
placed by a cable that was too
thin (thicker isn't so bad, thinner
can have nasty consequences).
You can find the electrical dia-
gram for your Volkswagen in the
Bentley Publishing book series,
and compare if the diameter of
the cables are correct.
Paruzzi Magazine 22
CLASSIC CAR PARTS
The formula and the method to
determine the diameter of a ca-
ble can be found in edition 21.
We are going to repair the green
cable with black stripe, the diam-
eter is 1.00 mm (picture below).
First cut a piece of the cable,
strip the insulation, then you are
sure that the copper conductor
has its full thickness. According
to the formula below, 1.00 mm
diameter corresponds to a diam-
eter of 0.75 mm .
2
A= π x r 2
cable
