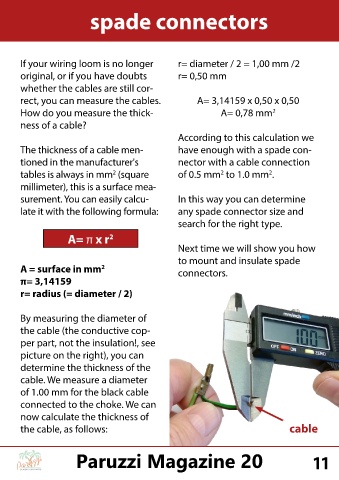

spade connectors

If your wiring loom is no longer r= diameter / 2 = 1,00 mm /2

original, or if you have doubts r= 0,50 mm

whether the cables are still cor-

rect, you can measure the cables. A= 3,14159 x 0,50 x 0,50
How do you measure the thick- A= 0,78 mm 2

ness of a cable?

According to this calculation we

The thickness of a cable men- have enough with a spade con-
tioned in the manufacturer's nector with a cable connection

tables is always in mm (square of 0.5 mm to 1.0 mm .
2
2
2
millimeter), this is a surface mea-
surement. You can easily calcu- In this way you can determine

late it with the following formula: any spade connector size and

search for the right type.

A= π x r 2
Next time we will show you how

to mount and insulate spade
A = surface in mm connectors.
2
π= 3,14159

r= radius (= diameter / 2)

By measuring the diameter of

the cable (the conductive cop-

per part, not the insulation!, see
picture on the right), you can

determine the thickness of the

cable. We measure a diameter

of 1.00 mm for the black cable
connected to the choke. We can

now calculate the thickness of

the cable, as follows: cable

Paruzzi Magazine 20 11
