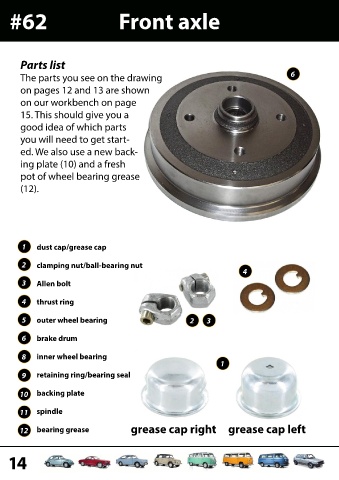

#62 Front axle
Parts list
The parts you see on the drawing 6
on pages 12 and 13 are shown
on our workbench on page
15. This should give you a
good idea of which parts
you will need to get start-
ed. We also use a new back-
ing plate (10) and a fresh
pot of wheel bearing grease
(12).
1 dust cap/grease cap
2 clamping nut/ball-bearing nut
4
3 Allen bolt
4 thrust ring
5 outer wheel bearing 2 3
6 brake drum
8 inner wheel bearing
1
9 retaining ring/bearing seal
10 backing plate
11 spindle
12 bearing grease grease cap right grease cap left
