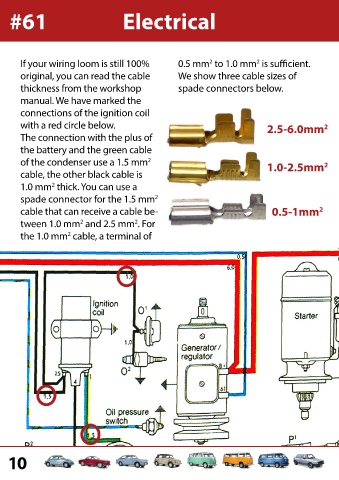

#61 Electrical spade connectors
If your wiring loom is still 100% 0.5 mm to 1.0 mm is sufficient.
2
2
original, you can read the cable We show three cable sizes of
thickness from the workshop spade connectors below.
manual. We have marked the
connections of the ignition coil
with a red circle below. 2.5-6.0mm 2
The connection with the plus of
the battery and the green cable
of the condenser use a 1.5 mm 1.0-2.5mm 2
2
cable, the other black cable is
1.0 mm thick. You can use a
2
spade connector for the 1.5 mm
2
cable that can receive a cable be- 0.5-1mm 2
tween 1.0 mm and 2.5 mm . For
2
2
the 1.0 mm cable, a terminal of
2
