Page 281 - Paruzzi parts catalogue for the Volkswagen Vanagon

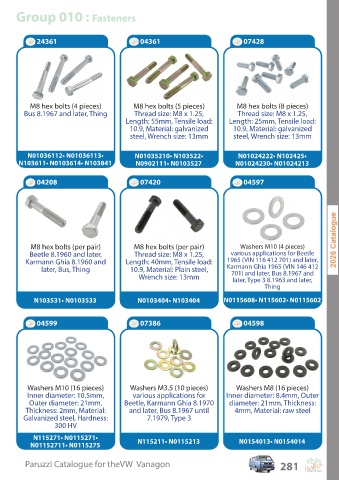

P. 281
Group 010 : Fasteners
24361 04361 07428
M8 hex bolts (4 pieces) M8 hex bolts (5 pieces) M8 hex bolts (8 pieces)
Bus 8.1967 and later, Thing Thread size: M8 x 1.25, Thread size: M8 x 1.25,
Length: 55mm, Tensile load: Length: 25mm, Tensile load:
10.9, Material: galvanized 10.9, Material: galvanized
steel, Wrench size: 13mm steel, Wrench size: 13mm
N01036112• N01036113• N01035210• N103522• N01024222• N102425•
N103611• N0103614• N103841 N0902111• N0103527 N01024230• N01024213
04208 07420 04597
M8 hex bolts (per pair) M8 hex bolts (per pair) Washers M10 (4 pieces)
Beetle 8.1960 and later, Thread size: M8 x 1.25, various applications for Beetle
Karmann Ghia 8.1960 and Length: 40mm, Tensile load: 1965 (VIN 116 412 701) and later,
later, Bus, Thing 10.9, Material: Plain steel, Karmann Ghia 1965 (VIN 146 412
Wrench size: 13mm 701) and later, Bus 8.1967 and
later, Type 3 8.1963 and later,
Thing
N103531• N0103533 N0103404• N103404 N0115608• N115602• N0115602
04599 07386 04598
Washers M10 (16 pieces) Washers M3.5 (10 pieces) Washers M8 (16 pieces)
Inner diameter: 10.5mm, various applications for Inner diameter: 8.4mm, Outer
Outer diameter: 21mm, Beetle, Karmann Ghia 8.1970 diameter: 21mm, Thickness:
Thickness: 2mm, Material: and later, Bus 8.1967 until 4mm, Material: raw steel
Galvanized steel, Hardness: 7.1979, Type 3
300 HV
N115271• N0115271• N115211• N0115213 N0154013• N0154014
N01152711• N0115275
P aruzzi C a talogue f or theV W V anagon 281
Paruzzi Catalogue for theVW Vanagon
281
