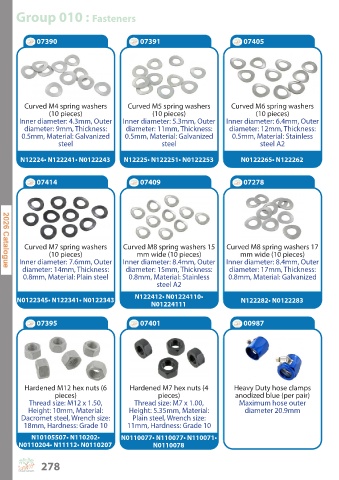

Page 278 - Paruzzi parts catalogue for the Volkswagen Vanagon

Group 010 : Fasteners

07390 07391 07405

Curved M4 spring washers Curved M5 spring washers Curved M6 spring washers
(10 pieces) (10 pieces) (10 pieces)
Inner diameter: 4.3mm, Outer Inner diameter: 5.3mm, Outer Inner diameter: 6.4mm, Outer
diameter: 9mm, Thickness: diameter: 11mm, Thickness: diameter: 12mm, Thickness:
0.5mm, Material: Galvanized 0.5mm, Material: Galvanized 0.5mm, Material: Stainless
steel steel steel A2

N12224• N122241• N0122243 N12225• N122251• N0122253 N0122265• N122262

07414 07409 07278

Curved M7 spring washers Curved M8 spring washers 15 Curved M8 spring washers 17
(10 pieces) mm wide (10 pieces) mm wide (10 pieces)
Inner diameter: 7.6mm, Outer Inner diameter: 8.4mm, Outer Inner diameter: 8.4mm, Outer
diameter: 14mm, Thickness: diameter: 15mm, Thickness: diameter: 17mm, Thickness:
0.8mm, Material: Plain steel 0.8mm, Material: Stainless 0.8mm, Material: Galvanized
steel A2

N0122345• N122341• N0122343 N122412• N01224110• N122282• N0122283
N01224111

07395 07401 00987

Hardened M12 hex nuts (6 Hardened M7 hex nuts (4 Heavy Duty hose clamps
pieces) pieces) anodized blue (per pair)
Thread size: M12 x 1.50, Thread size: M7 x 1.00, Maximum hose outer
Height: 10mm, Material: Height: 5.35mm, Material: diameter 20.9mm
Dacromet steel, Wrench size: Plain steel, Wrench size:
18mm, Hardness: Grade 10 11mm, Hardness: Grade 10

N10105507• N110202• N0110077• N110077• N110071•
N0110204• N11112• N0110207 N0110078

278
