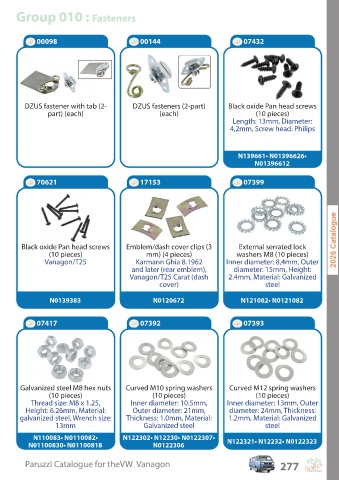

Page 277 - Paruzzi parts catalogue for the Volkswagen Vanagon

Group 010 : Fasteners

00098 00144 07432

DZUS fastener with tab (2- DZUS fasteners (2-part) Black oxide Pan head screws
part) (each) (each) (10 pieces)
Length: 13mm, Diameter:
4,2mm, Screw head: Philips

N139661• N01396626•
N01396612

70621 17153 07399

Black oxide Pan head screws Emblem/dash cover clips (3 External serrated lock
(10 pieces) mm) (4 pieces) washers M8 (10 pieces)
Vanagon/T25 Karmann Ghia 8.1962 Inner diameter: 8,4mm, Outer
and later (rear emblem), diameter: 15mm, Height:
Vanagon/T25 Carat (dash 2.4mm, Material: Galvanized
cover) steel

N0139383 N0120672 N121082• N0121082

07417 07392 07393

Galvanized steel M8 hex nuts Curved M10 spring washers Curved M12 spring washers
(10 pieces) (10 pieces) (10 pieces)
Thread size: M8 x 1.25, Inner diameter: 10.5mm, Inner diameter: 13mm, Outer
Height: 6.26mm, Material: Outer diameter: 21mm, diameter: 24mm, Thickness:
galvanized steel, Wrench size: Thickness: 1.0mm, Material: 1.2mm, Material: Galvanized
13mm Galvanized steel steel

N110083• N0110082• N122302• N12230• N0122307• N122321• N12232• N0122323
N01100830• N01100818 N0122306

anagon
V
aruzzi C
P
Paruzzi Catalogue for theVW Vanagon 277
