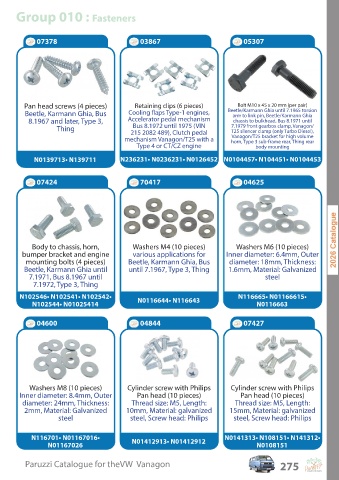

P. 275
Group 010 : Fasteners
07378 03867 05307
Pan head screws (4 pieces) Retaining clips (6 pieces) Bolt M10 x 45 x 20 mm (per pair)
Beetle, Karmann Ghia, Bus Cooling flaps Type-1 engines, Beetle/Karmann Ghia until 7.1965 torsion
arm to link pin, Beetle/Karmann Ghia
8.1967 and later, Type 3, Accelerator pedal mechanism chassis to bulkhead, Bus 8.1971 until
Thing Bus 8.1972 until 1975 (VIN 7.1979 front gearbox clamp, Vanagon/
215 2082 489), Clutch pedal T25 silencer clamp (only Turbo Diesel),
Vanagon/T25 bracket for high volume
mechanism Vanagon/T25 with a horn, Type 3 sub-frame rear, Thing rear
Type 4 or CT/CZ engine body mounting
N0139713• N139711 N236231• N0236231• N0126452 N0104457• N104451• N0104453
07424 70417 04625
Body to chassis, horn, Washers M4 (10 pieces) Washers M6 (10 pieces)
bumper bracket and engine various applications for Inner diameter: 6.4mm, Outer
mounting bolts (4 pieces) Beetle, Karmann Ghia, Bus diameter: 18mm, Thickness:
Beetle, Karmann Ghia until until 7.1967, Type 3, Thing 1.6mm, Material: Galvanized
7.1971, Bus 8.1967 until steel
7.1972, Type 3, Thing
N102546• N102541• N102542• N0116644• N116643 N116665• N01166615•
N102544• N01025414 N0116663
04600 04844 07427
Washers M8 (10 pieces) Cylinder screw with Philips Cylinder screw with Philips
Inner diameter: 8.4mm, Outer Pan head (10 pieces) Pan head (10 pieces)
diameter: 24mm, Thickness: Thread size: M5, Length: Thread size: M5, Length:
2mm, Material: Galvanized 10mm, Material: galvanized 15mm, Material: galvanized
steel steel, Screw head: Philips steel, Screw head: Philips
N116701• N01167016• N01412913• N01412912 N0141313• N108151• N141312•
N01167026 N0108151
