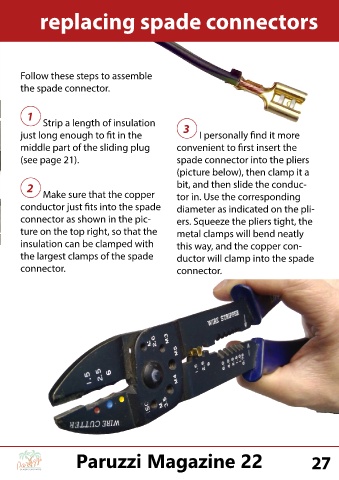

replacing spade connectors
Follow these steps to assemble
the spade connector.
1
Strip a length of insulation 3
just long enough to fit in the I personally find it more
middle part of the sliding plug convenient to first insert the
(see page 21). spade connector into the pliers
(picture below), then clamp it a
2 bit, and then slide the conduc-
Make sure that the copper tor in. Use the corresponding
conductor just fits into the spade diameter as indicated on the pli-
connector as shown in the pic- ers. Squeeze the pliers tight, the
ture on the top right, so that the metal clamps will bend neatly
insulation can be clamped with this way, and the copper con-
the largest clamps of the spade ductor will clamp into the spade
connector. connector.
