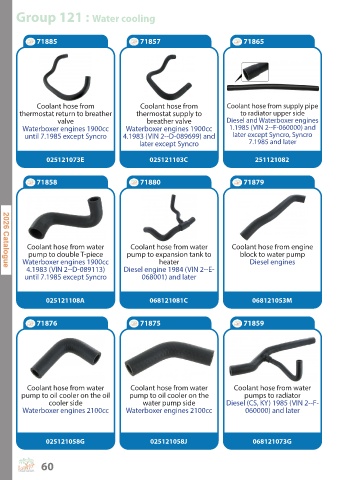

Page 60 - Paruzzi parts catalogue for the Volkswagen Vanagon

Group 121 : Water cooling

71885 71857 71865

Coolant hose from Coolant hose from Coolant hose from supply pipe
thermostat return to breather thermostat supply to to radiator upper side
valve breather valve Diesel and Waterboxer engines
Waterboxer engines 1900cc Waterboxer engines 1900cc 1.1985 (VIN 2--F-060000) and
until 7.1985 except Syncro 4.1983 (VIN 2--D-089699) and later except Syncro, Syncro
later except Syncro 7.1985 and later

025121073E 025121103C 251121082

71858 71880 71879

Coolant hose from water Coolant hose from water Coolant hose from engine
pump to double T-piece pump to expansion tank to block to water pump
Waterboxer engines 1900cc heater Diesel engines
4.1983 (VIN 2--D-089113) Diesel engine 1984 (VIN 2--E-
until 7.1985 except Syncro 068001) and later

025121108A 068121081C 068121053M

71876 71875 71859

Coolant hose from water Coolant hose from water Coolant hose from water
pump to oil cooler on the oil pump to oil cooler on the pumps to radiator
cooler side water pump side Diesel (CS, KY) 1985 (VIN 2--F-
Waterboxer engines 2100cc Waterboxer engines 2100cc 060000) and later

025121058G 025121058J 068121073G

60
