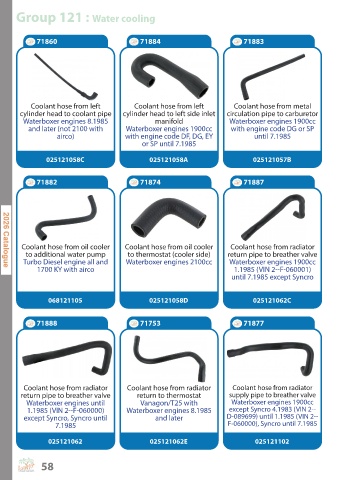

Page 58 - Paruzzi parts catalogue for the Volkswagen Vanagon

Group 121 : Water cooling

71860 71884 71883

Coolant hose from left Coolant hose from left Coolant hose from metal
cylinder head to coolant pipe cylinder head to left side inlet circulation pipe to carburetor
Waterboxer engines 8.1985 manifold Waterboxer engines 1900cc
and later (not 2100 with Waterboxer engines 1900cc with engine code DG or SP
airco) with engine code DF, DG, EY until 7.1985
or SP until 7.1985

025121058C 025121058A 025121057B

71882 71874 71887

Coolant hose from oil cooler Coolant hose from oil cooler Coolant hose from radiator
to additional water pump to thermostat (cooler side) return pipe to breather valve
Turbo Diesel engine all and Waterboxer engines 2100cc Waterboxer engines 1900cc
1700 KY with airco 1.1985 (VIN 2--F-060001)
until 7.1985 except Syncro

068121105 025121058D 025121062C

71888 71753 71877

Coolant hose from radiator Coolant hose from radiator Coolant hose from radiator
return pipe to breather valve return to thermostat supply pipe to breather valve
Waterboxer engines until Vanagon/T25 with Waterboxer engines 1900cc
1.1985 (VIN 2--F-060000) Waterboxer engines 8.1985 except Syncro 4.1983 (VIN 2--
except Syncro, Syncro until and later D-089699) until 1.1985 (VIN 2--
7.1985 F-060000), Syncro until 7.1985

025121062 025121062E 025121102

58
58
