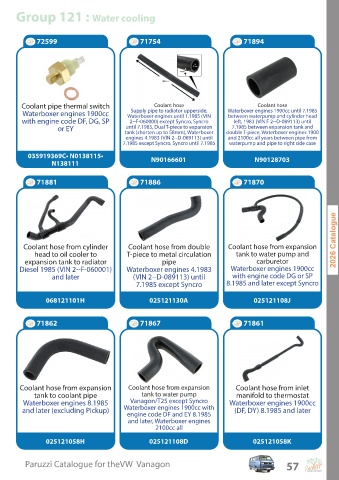

Page 57 - Paruzzi parts catalogue for the Volkswagen Vanagon
P. 57
Group 121 : Water cooling
72599 71754 71894
Coolant pipe thermal switch Coolant hose Coolant hose
Supply pipe to radiator upperside,
Waterboxer engines 1900cc Waterboxer engines until 1.1985 (VIN Waterboxer engines 1900cc until 7.1985
between waterpump and cylinder head
with engine code DF, DG, SP 2--F-060000) except Syncro, Syncro left, 1983 (VIN F 2--D-089113) until
or EY until 7.1985, Dual T-piece to expansion 7.1985 between expansion tank and
tank (shorten up to 58mm), Waterboxer double T-piece, Waterboxer engines 1900
engines 4.1983 (VIN 2--D-089113) until and 2100cc all years between pipe from
7.1985 except Syncro, Syncro until 7.1985 waterpump and pipe to right side case
035919369C• N0138115• N90166601 N90128703
N138111
71881 71886 71870
Coolant hose from cylinder Coolant hose from double Coolant hose from expansion
head to oil cooler to T-piece to metal circulation tank to water pump and
expansion tank to radiator pipe carburetor
Diesel 1985 (VIN 2--F-060001) Waterboxer engines 4.1983 Waterboxer engines 1900cc
and later (VIN 2--D-089113) until with engine code DG or SP
7.1985 except Syncro 8.1985 and later except Syncro
068121101H 025121130A 025121108J
71862 71867 71861
Coolant hose from expansion Coolant hose from expansion Coolant hose from inlet
tank to coolant pipe tank to water pump manifold to thermostat
Waterboxer engines 8.1985 Vanagon/T25 except Syncro Waterboxer engines 1900cc
and later (excluding Pickup) Waterboxer engines 1900cc with (DF, DY) 8.1985 and later
engine code DF and EY 8.1985
and later, Waterboxer engines
2100cc all
025121058H 025121108D 025121058K
