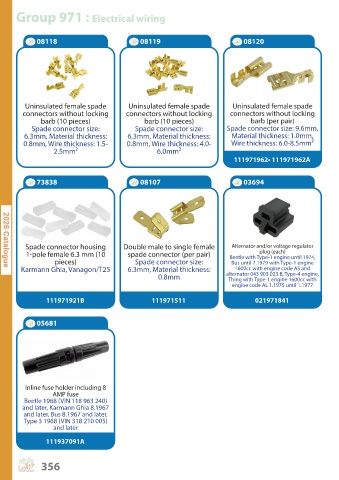

Page 356 - Paruzzi parts catalogue for the Volkswagen Karmann Ghia

Group 971 : Electrical wiring

08118 08119 08120

Uninsulated female spade Uninsulated female spade Uninsulated female spade
connectors without locking connectors without locking connectors without locking
barb (10 pieces) barb (10 pieces) barb (per pair)
Spade connector size: Spade connector size: Spade connector size: 9.6mm,
6.3mm, Material thickness: 6.3mm, Material thickness: Material thickness: 1.0mm,
0.8mm, Wire thickness: 1.5- 0.8mm, Wire thickness: 4.0- Wire thickness: 6.0-8.5mm²
2.5mm² 6.0mm²
111971962• 111971962A

73838 08107 03694

Spade connector housing Double male to single female Alternator and/or voltage regulator
plug (each)
1-pole female 6.3 mm (10 spade connector (per pair) Beetle with Type-1 engine until 1974,
pieces) Spade connector size: Bus until 7.1979 with Type-1 engine
Karmann Ghia, Vanagon/T25 6.3mm, Material thickness: 1600cc with engine code AS and
0.8mm alternator 043 903 023 B, Type-4 engine,
Thing with Type-1 engine 1600cc with
engine code AL 1.1975 until 1.1977

111971921B 111971511 021971841

05681

Inline fuse holder including 8
AMP fuse
Beetle 1968 (VIN 118 963 240)
and later, Karmann Ghia 8.1967
and later, Bus 8.1967 and later,
Type 3 1968 (VIN 318 210 005)
and later

111937091A

356
