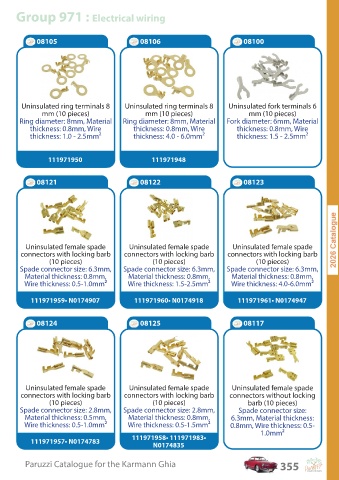

Page 355 - Paruzzi parts catalogue for the Volkswagen Karmann Ghia
P. 355
Group 971 : Electrical wiring
08105 08106 08100
Uninsulated ring terminals 8 Uninsulated ring terminals 8 Uninsulated fork terminals 6
mm (10 pieces) mm (10 pieces) mm (10 pieces)
Ring diameter: 8mm, Material Ring diameter: 8mm, Material Fork diameter: 6mm, Material
thickness: 0.8mm, Wire thickness: 0.8mm, Wire thickness: 0.8mm, Wire
thickness: 1.0 - 2.5mm² thickness: 4.0 - 6.0mm² thickness: 1.5 - 2.5mm²
111971950 111971948
08121 08122 08123
Uninsulated female spade Uninsulated female spade Uninsulated female spade
connectors with locking barb connectors with locking barb connectors with locking barb
(10 pieces) (10 pieces) (10 pieces)
Spade connector size: 6.3mm, Spade connector size: 6.3mm, Spade connector size: 6.3mm,
Material thickness: 0.8mm, Material thickness: 0.8mm, Material thickness: 0.8mm,
Wire thickness: 0.5-1.0mm² Wire thickness: 1.5-2.5mm² Wire thickness: 4.0-6.0mm²
111971959• N0174907 111971960• N0174918 111971961• N0174947
08124 08125 08117
Uninsulated female spade Uninsulated female spade Uninsulated female spade
connectors with locking barb connectors with locking barb connectors without locking
(10 pieces) (10 pieces) barb (10 pieces)
Spade connector size: 2.8mm, Spade connector size: 2.8mm, Spade connector size:
Material thickness: 0.5mm, Material thickness: 0.8mm, 6.3mm, Material thickness:
Wire thickness: 0.5-1.0mm² Wire thickness: 0.5-1.5mm² 0.8mm, Wire thickness: 0.5-
1.0mm²
111971957• N0174783 111971958• 111971983•
N0174835
Paruzzi Catalogue for the Karmann Ghia
P aruzzi C a talogue f or the K ar mann Ghia 355
355
