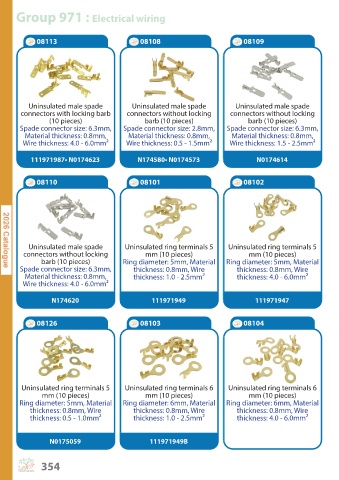

Page 354 - Paruzzi parts catalogue for the Volkswagen Karmann Ghia
P. 354
Group 971 : Electrical wiring
08113 08108 08109
Uninsulated male spade Uninsulated male spade Uninsulated male spade
connectors with locking barb connectors without locking connectors without locking
(10 pieces) barb (10 pieces) barb (10 pieces)
Spade connector size: 6.3mm, Spade connector size: 2.8mm, Spade connector size: 6.3mm,
Material thickness: 0.8mm, Material thickness: 0.8mm, Material thickness: 0.8mm,
Wire thickness: 4.0 - 6.0mm² Wire thickness: 0.5 - 1.5mm² Wire thickness: 1.5 - 2.5mm²
111971987• N0174623 N174580• N0174573 N0174614
08110 08101 08102
Uninsulated male spade Uninsulated ring terminals 5 Uninsulated ring terminals 5
connectors without locking mm (10 pieces) mm (10 pieces)
barb (10 pieces) Ring diameter: 5mm, Material Ring diameter: 5mm, Material
Spade connector size: 6.3mm, thickness: 0.8mm, Wire thickness: 0.8mm, Wire
Material thickness: 0.8mm, thickness: 1.0 - 2.5mm² thickness: 4.0 - 6.0mm²
Wire thickness: 4.0 - 6.0mm²
N174620 111971949 111971947
08126 08103 08104
Uninsulated ring terminals 5 Uninsulated ring terminals 6 Uninsulated ring terminals 6
mm (10 pieces) mm (10 pieces) mm (10 pieces)
Ring diameter: 5mm, Material Ring diameter: 6mm, Material Ring diameter: 6mm, Material
thickness: 0.8mm, Wire thickness: 0.8mm, Wire thickness: 0.8mm, Wire
thickness: 0.5 - 1.0mm² thickness: 1.0 - 2.5mm² thickness: 4.0 - 6.0mm²
N0175059 111971949B
