#67 Electrical voltage drops

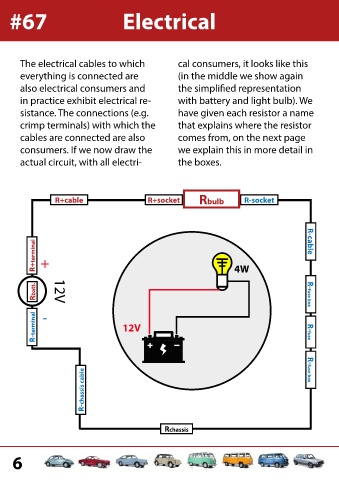

The electrical cables to which cal consumers, it looks like this

everything is connected are (in the middle we show again

also electrical consumers and the simplified representation

in practice exhibit electrical re- with battery and light bulb). We
sistance. The connections (e.g. have given each resistor a name

crimp terminals) with which the that explains where the resistor

cables are connected are also comes from, on the next page

consumers. If we now draw the we explain this in more detail in
actual circuit, with all electri- the boxes.

R+cable R+socket Rbulb R-socket

R+terminal + 4W R-cable

Rbatt. 12V R-fuse box

R-terminal - 12V R-fuse

R-chassis cable R-fuse box

Rchassis
