#64 Engine replacing the sump plate studs
6 studs

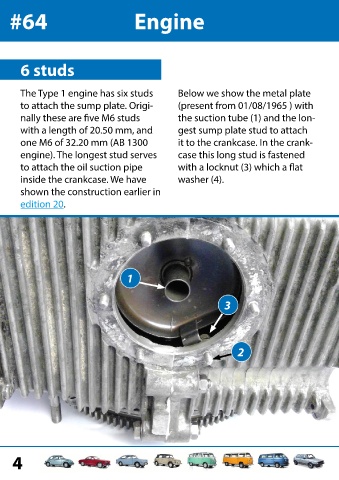

The Type 1 engine has six studs Below we show the metal plate
to attach the sump plate. Origi- (present from 01/08/1965 ) with
nally these are five M6 studs the suction tube (1) and the lon-
with a length of 20.50 mm, and gest sump plate stud to attach
one M6 of 32.20 mm (AB 1300 it to the crankcase. In the crank-
engine). The longest stud serves case this long stud is fastened
to attach the oil suction pipe with a locknut (3) which a flat
inside the crankcase. We have washer (4).
shown the construction earlier in
edition 20.
1
3
2
